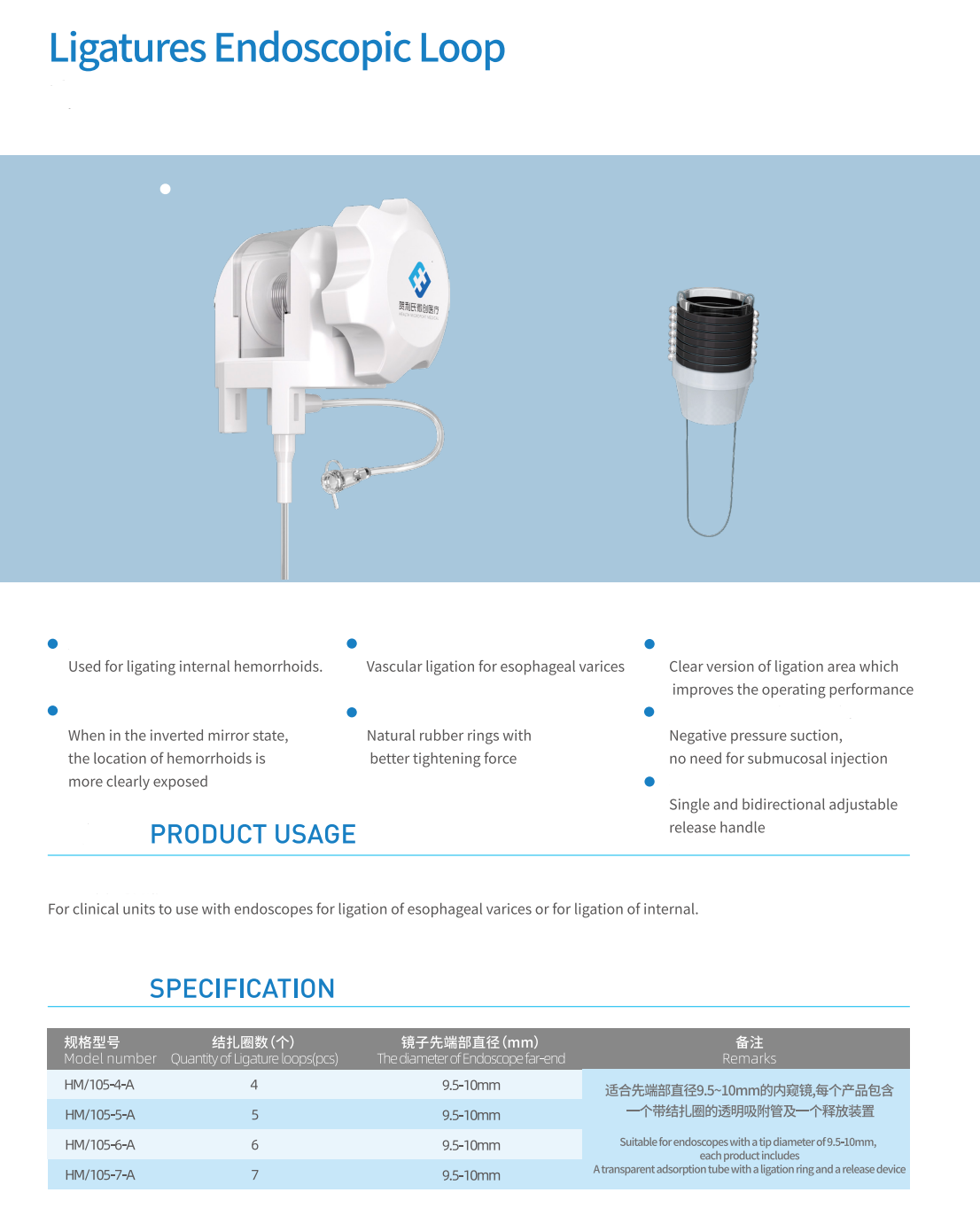

Health Microport Disposable Endoscopic Ligation Device

FDA Class II | 510(k) Exempt | Product Code MND | Single Use | Rx Only

The Disposable Endoscopic Ligation Device is a single-use endoscopic accessory for band ligation of esophageal varices. It mounts on the endoscope tip and uses negative-pressure suction to draw target tissue into a transparent cap, then releases natural rubber ligation bands with a rotating handle. No submucosal injection is required.

Key Features

Negative-pressure suction. The target tissue is drawn into the cap by suction before banding, so no submucosal injection is needed.

Transparent adsorption cap. The clear cap keeps the ligation area visible, which helps the operator place each band accurately.

Natural rubber ligation bands. The bands give strong, consistent tightening force for secure ligation.

Adjustable release handle. The handle supports single and bidirectional adjustable release, so the operator controls band deployment.

Multiple band counts. Configurations with 4, 5, 6, or 7 bands cover different procedure needs.

Intended Use

For use by clinical units with endoscopes for ligation of esophageal varices.

Specifications

4-Band ┃ Model Number: HM/105-4-A ┃ Ligation Bands: 4 ┃ Endoscope Tip Diameter: 9.5–10 mm

5-Band ┃ Model Number: HM/105-5-A ┃ Ligation Bands: 5 ┃ Endoscope Tip Diameter: 9.5–10 mm

6-Band ┃ Model Number: HM/105-6-A ┃ Ligation Bands: 6 ┃ Endoscope Tip Diameter: 9.5–10 mm

7-Band ┃ Model Number: HM/105-7-A ┃ Ligation Bands: 7 ┃ Endoscope Tip Diameter: 9.5–10 mm

Package Contents (each unit): Transparent adsorption cap with preloaded ligation bands ┃ Release device

Caution: This Product Contains Natural Rubber Latex Which May Cause Allergic Reactions.

Regulatory Information

FDA Device Class Class II
Product Code MND (Ligator, Esophageal)
Regulation 21 CFR 876.4400
Premarket Status 510(k) Exempt
FDA Device Listing D273721

For professional use only. Sold exclusively to hospitals, clinics, and other licensed healthcare institutions. Read the Instructions for Use before use.
