Kernal KN-4001 UV Phototherapy Cabinet System for Vitiligo and Psoriasis

Professional Whole-Body Phototherapy for Dermatology Institutions

Certification: FDA 510K cleared

The KN-4001 is a cabinet-style UV phototherapy system developed for whole-body light treatment in professional dermatology settings. It is positioned for institutions running structured, physician-guided phototherapy programs — including hospital dermatology departments, dedicated phototherapy centers, specialty dermatology clinics, and other skin treatment institutions that need a professionally configured system rather than a spot-treatment device.

The cabinet format, precision dosing controls, and case management software are built around clinical workflow needs: consistent dosing across sessions, full-body coverage, and documentation of individual patient treatment history.

Product demo: https://youtu.be/Gkdke4NBlTs?si=1VxuQ9id6UgcuZqL

Indications

The KN-4001 is positioned for phototherapy workflows involving:

• Vitiligo
• Psoriasis
• Eczema
• Pityriasis rosea

Treatment protocols and suitability should be determined by the treating physician based on the specific condition and patient.

Available Configurations

Unlike the full KN-4001 series (which includes A, A1, and B1 variants at higher lamp wattages), we carry two configurations:

Choosing between them:

• KN-4001B is a narrowband UVB-only setup, commonly used for psoriasis and other conditions where NB-UVB is the primary modality.
• KN-4001AB provides simultaneous UVA and UVB output from a shared cabinet, giving institutions flexibility to support PUVA-related and NB-UVB workflows depending on how the treatment protocol is structured, without needing two separate units.

Both configurations use the same cabinet body, control system, and touchscreen interface — the difference is strictly in lamp composition and the resulting treatment flexibility.

Light Source

Both models use Philips medical-grade lamps as the light source:

• UVB output: 311nm ±3nm (narrowband)
• UVA output: 368nm ±3nm (KN-4001AB only)

An internal reflector design is used to maintain high irradiation intensity and shorten treatment time per session.

Key Features

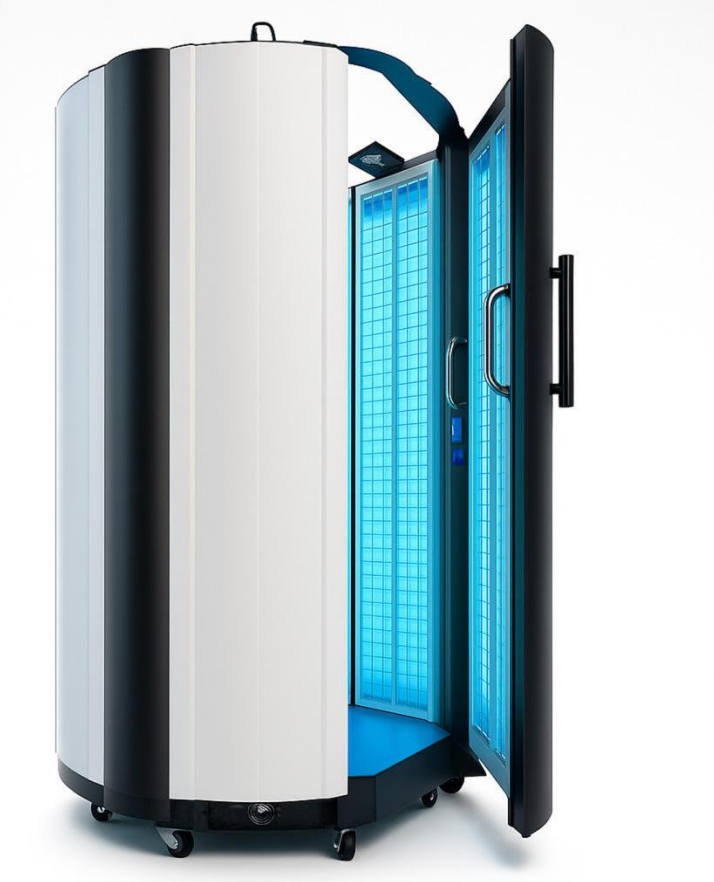

Whole-Body Treatment Cabinet Effective radiation area of approximately 49,000cm² ±10%, with a working distance of 20cm ±1cm — sized for full-body sessions rather than localized treatment.

Precision Dose and Time Control Microcomputer-based control allows treatment to be managed by dose or time, with real-time display of equipment working status throughout the session. This supports repeatable, protocol-consistent dosing across visits and across patients.

• Irradiation dose limits: UVA ≤20J/cm², UVB ≤5J/cm²
• Maximum exposure time: ≤30 minutes per session

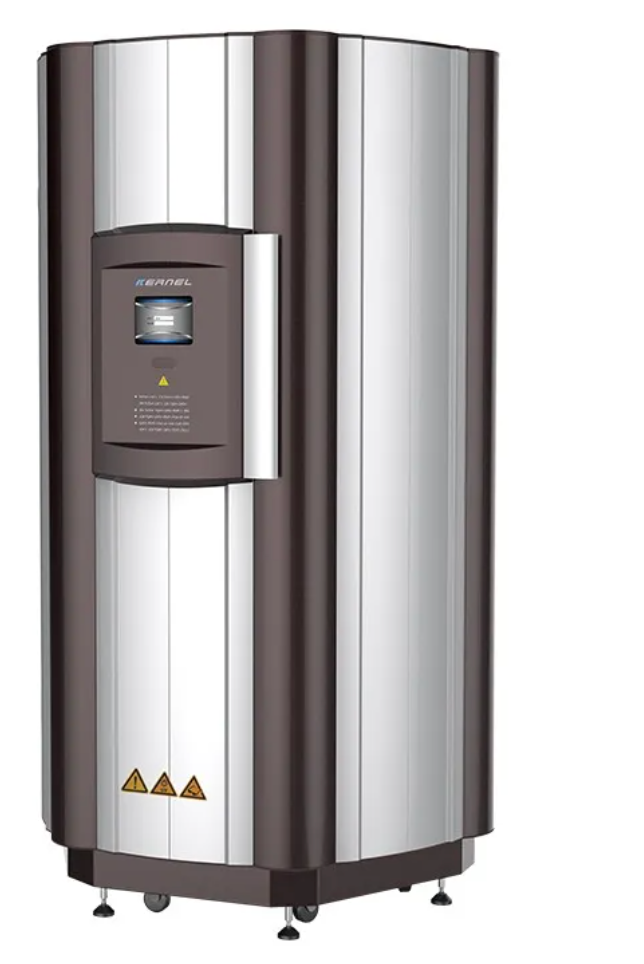

8-Inch TFT LCD Touchscreen with Case Management The touchscreen interface includes case management functionality, allowing the system to support recordkeeping per patient. Hardware and software double-monitoring is built in as a safety redundancy layer during treatment.

Optional UV Intensity Monitoring An optional real-time UV intensity measurement system can be added, allowing the institution to verify actual irradiation output against expected levels — useful for quality assurance and consistent dosing over the lamp's service life.

Ventilation and Cooling System A scientific ventilation and cooling system is built into the cabinet to keep the treatment space comfortable, particularly relevant given sessions can run up to 30 minutes.

Anti-Interference Technology Proprietary anti-interference technology is built in to maintain normal equipment operation even in environments with strong magnetic fields — relevant for institutions with other electromagnetic equipment nearby (e.g., hospital settings).

Technical Specifications

Frequently Asked Questions

What skin conditions is the KN-4001 positioned for? The system is positioned for phototherapy workflows involving vitiligo, psoriasis, eczema, and pityriasis rosea in professional dermatology settings, as directed by the treating physician.

What's the difference between the AB and B models? The B model (KN-4001B) is UVB-only, using all 40 lamps for narrowband UVB output. The AB model (KN-4001AB) splits the 40 lamps into 20 UVA and 20 UVB, allowing combined or independent UVA/UVB output from one cabinet.

Is the KN-4001 intended for whole-body treatment? Yes. The cabinet structure and ~49,000cm² radiation area are designed for whole-body phototherapy sessions rather than localized/handheld treatment.

How is dosing controlled? Via microcomputer control, by dose or by time, with real-time display of equipment status during the session.

Does it include patient recordkeeping? Yes — the touchscreen includes case management functionality to support per-patient documentation.
